Regal Tube Fly Head

Description

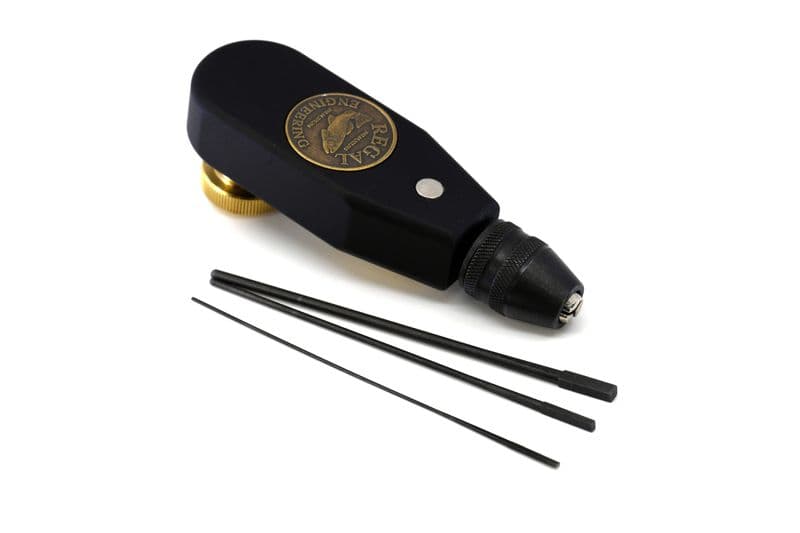

Regal's first-ever Tube Fly Head! This chuck-style vise head comes with 3 pins and is compatible with the Revolution and Medallion Series. Features: - Chuck style tube vise with 3 pins - Utilizes head similar to all Regal heads for comfortable hand placement and easy tying - Head fits both Revolution and Medallion series vises - Chuck can directly hold pins and hard tubes - Chuck opens to hold up to 5/32 inch diameter (4mm diameter) - Vise / Head come with 3 pins - small – 1/32 inch diameter straight taped to 1/16 inch (.8 to 1.6mm) - medium – 1/16 inch diameter straight taped to 3/32 inch (1.6 to 2.4mm) - large – 3/32 inch diameter straight tapered to 1/8 inch (2.4 to 3.2mm) - Pins have a 2 ¾ inch section of uniform diameter that tapers to a larger end with flat sides to securely hold tubes - Pins can be cut to shorter lengths - Pins can be used in either direction - Slide tube onto pin then insert small end of pin into chuck and tighten thus pinching the tube between taper/flat end of the pin and chuck face - Grip flat large end in chuck and then slide tubes onto pin • Insert large end of pin into into head and tighten chuck on pin leaving a short section of pin exposed - Head is bored to allow more than 2 inches of the either end of pin to be inside the chuck and head
